Shear Pins and Shear Tools in the Semicon Machine Industry
In the semiconductor industry, shear pins and shear tools are used for precise testing of die bond strength after bonding. Made from carbide, one of the hardest materials, these tools ensure the most accurate shear test results, with part accuracy up to 5 microns and the smallest face width as low as 20 microns.
These tools are critical in semiconductor bond strength testing and are compatible with testers like DAGE, XYZ SIGMA, ROYCE, and F&S Bonder Testers, ensuring high-precision results for die bond strength evaluation.
Our Variety of Shear Pins
Ball Shear Pin
Specifications: Shank 62mil, 187mil, 250mil; Custom Design
Tester Series: Dage XYZ Sigma Royce Tester Series, F&s Bonder Tester; Rhesca Tester Series
Die Shear Pin
Specifications: Shank 62mil, 187mil, 250mil; Custom Design
Tester Series:Dage XYZ Sigma Royce Tester Series, F&s Bonder Tester; Rhesca Tester Series
Ball Shear Pin & Die Shear Pin
Applicable Industries: Semiconductor Component Bond Strength Testing
Material: Carbide (HRC 85)
What Are Shear Pins and Shear Tools in Precision Tooling?
Shear tools are specialized components used to perform precise cutting or shearing actions in high-accuracy manufacturing environments, such as semiconductor, electronics, and micro-machining industries. These tools are engineered to deliver clean, consistent cuts or separations without damaging surrounding components.
While shear pins act as protective elements that break under excess force, shear tools are active tooling elements that carry out critical shearing tasks—often involving thin materials, leads, or small components. They are typically made from durable materials like tungsten carbide to maintain sharpness, resist wear, and ensure long tool life.
Together, shear pins and shear tools contribute to the reliability and performance of precision systems, ensuring both safety and productivity in delicate, high-precision operations.
Types of Shear Pins and Shear Tools

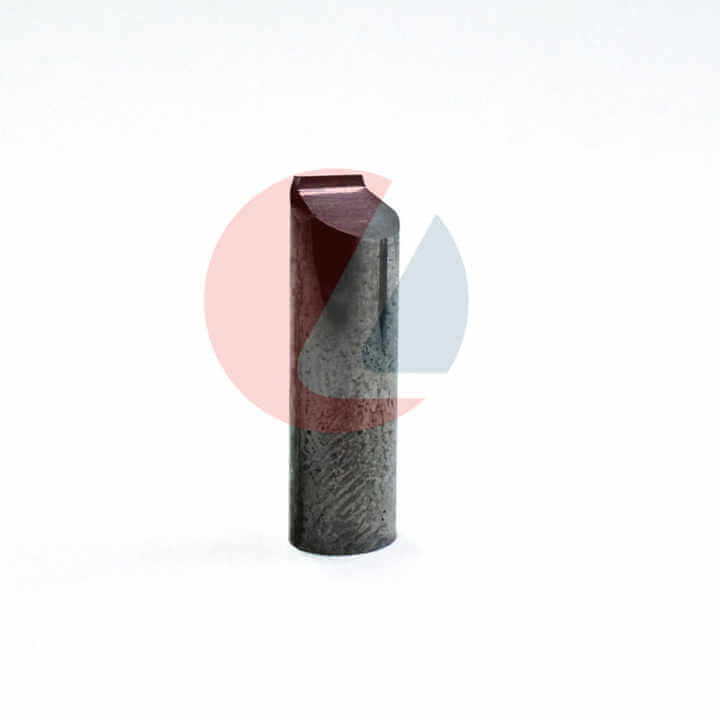

DIE SHEAR PIN SHANK
BALL SHEAR PIN

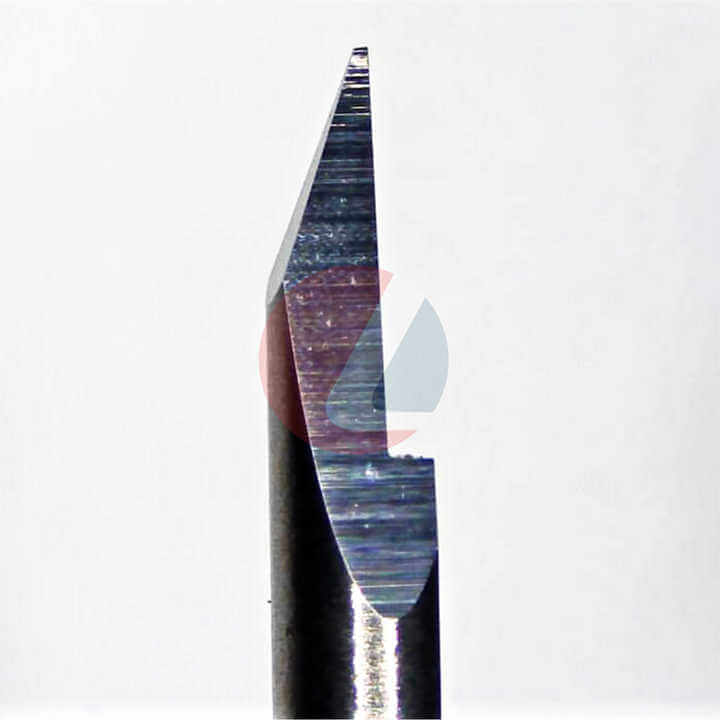

62MIL DIE SHEAR PIN
FAQs About Shear Pins & Shear Tools
What Are Shear Pins? Precision and Protection in Testing Applications
Shear pins are vital mechanical components designed to fail at a predetermined force, ensuring equipment safety and reliability. Acting as sacrificial safeguards, they protect critical parts from excessive loads by breaking under controlled conditions.
What Are the Applications of Shear Pins and Shear Tools in Semiconductor Manufacturing?
Shear pins and shear tools are primarily used for testing die bond strength in semiconductor manufacturing. They are essential in die and ball shearing to ensure the integrity of die bonds after the bonding process. These tools are crucial for quality control in semicon component bond strength testing.
How Accurate Are Shear Pins and Shear Tools in Die Bond Testing?
Shear pins and tools offer exceptional accuracy, with part precision up to 5 microns in face width and the smallest face width as low as 20 microns, ensuring highly reliable bond strength testing.
What Is the Difference Between Shear Pins and Shear Tools?
Shear pins are typically used for testing the die bond strength in specific machines, while shear tools are broader and refer to the entire set of components used in shearing processes. Both are used in bond strength testing, but shear tools may include additional parts for various applications.
About LeaderRange Hitech Sdn Bhd
At LeaderRange HiTech, we specialize in supplying high-quality shear pins and shear tools for a range of industrial applications. Designed for exceptional durability and precision, our shear solutions are perfect for testing, cutting, sorting, and machining needs.
With a commitment to innovation and customer satisfaction, we serve both local and international markets with excellence.
